Stair Climber SA-3
The Luxurious SA-3

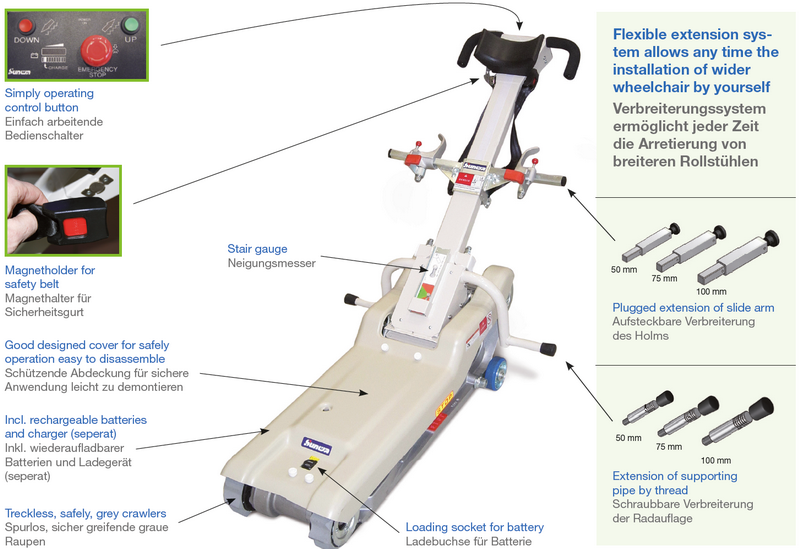

The Stair Climber is an easy to use, portable wheelchair lift designed to attach under most manual wheelchairs. Stair Climber‘s powerful motor allows a small attendant to safely transport a larger passenger up and down stairways. Stair Climber is suitable for indoor or outdoor use in public buildings and private homes. An affordable and reliable portable access solution.
Attachement for special wheelchair
In combination with shoe attachment and multifunction clamp suitable for wheelchairs with folding detachable backrest, adjustable handle, hand brake lever or small wheelchairs 12 – 22 inch.

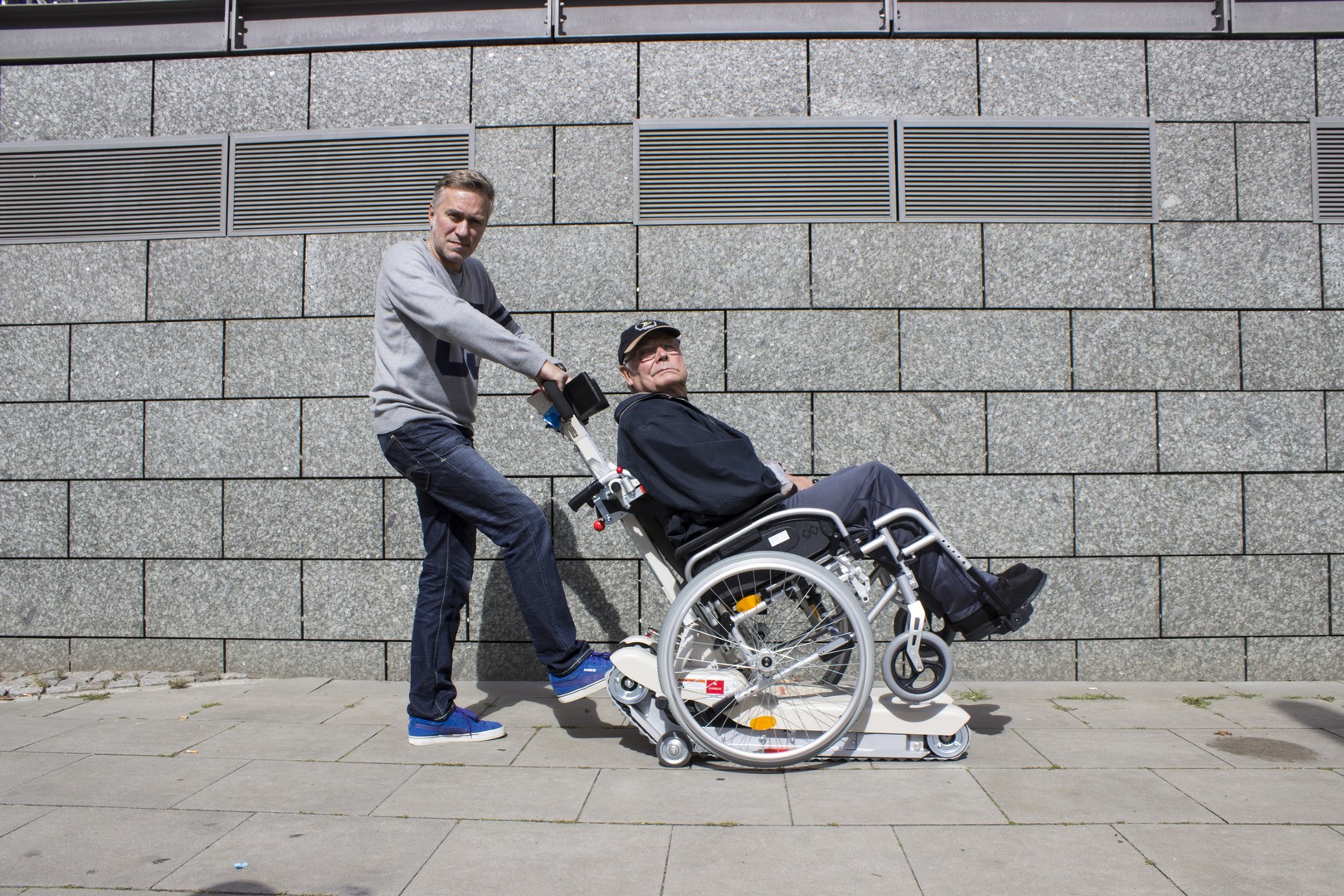

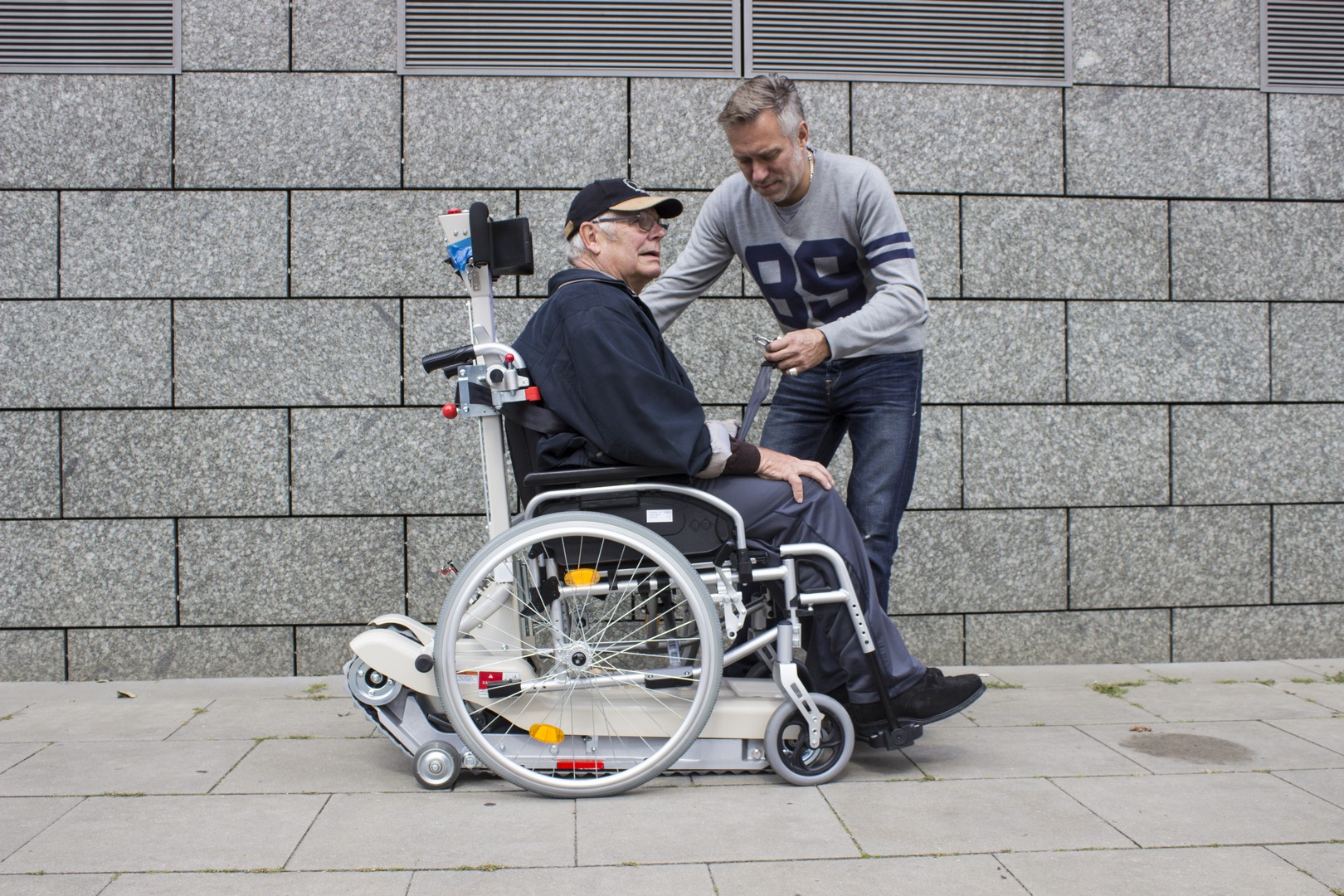

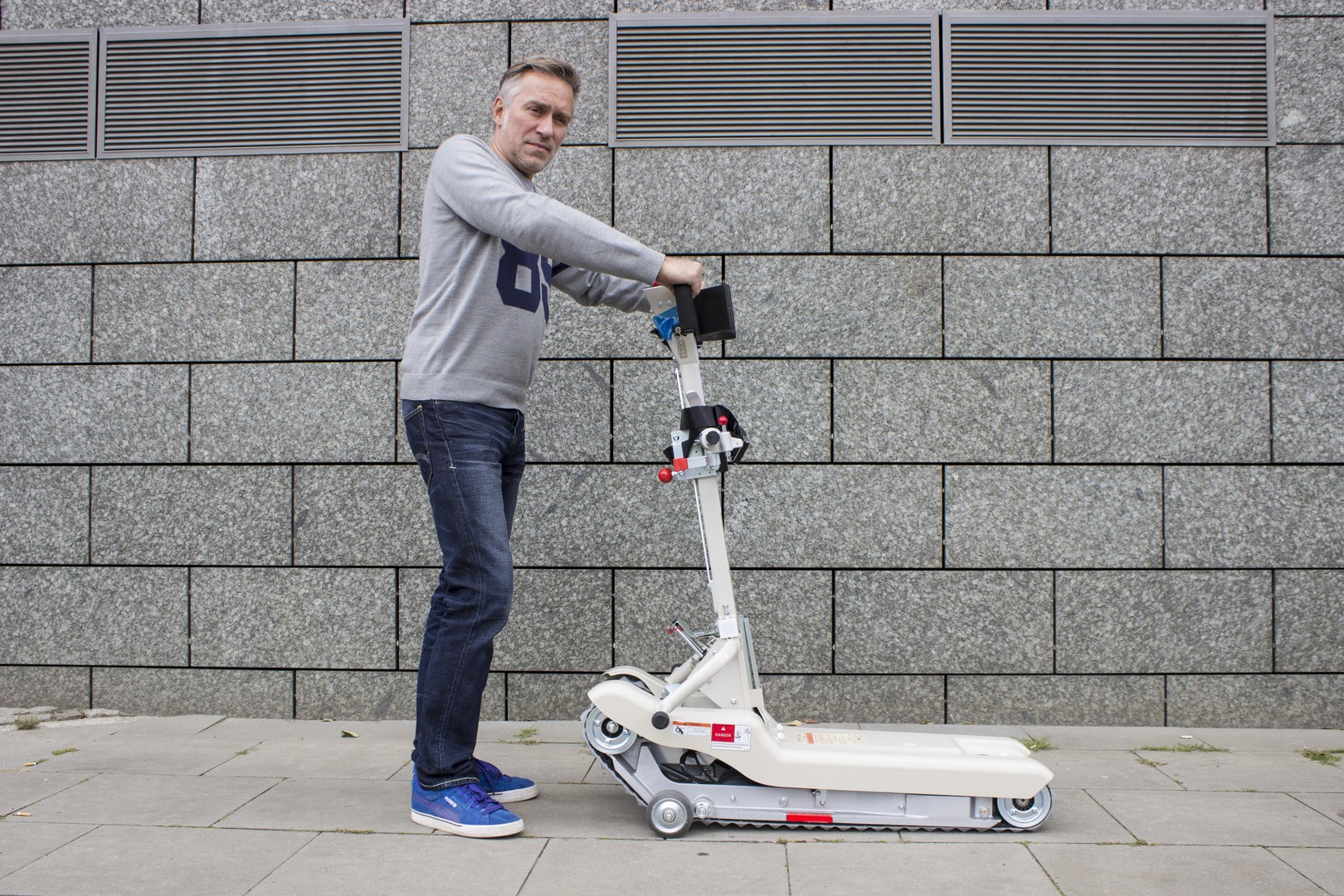

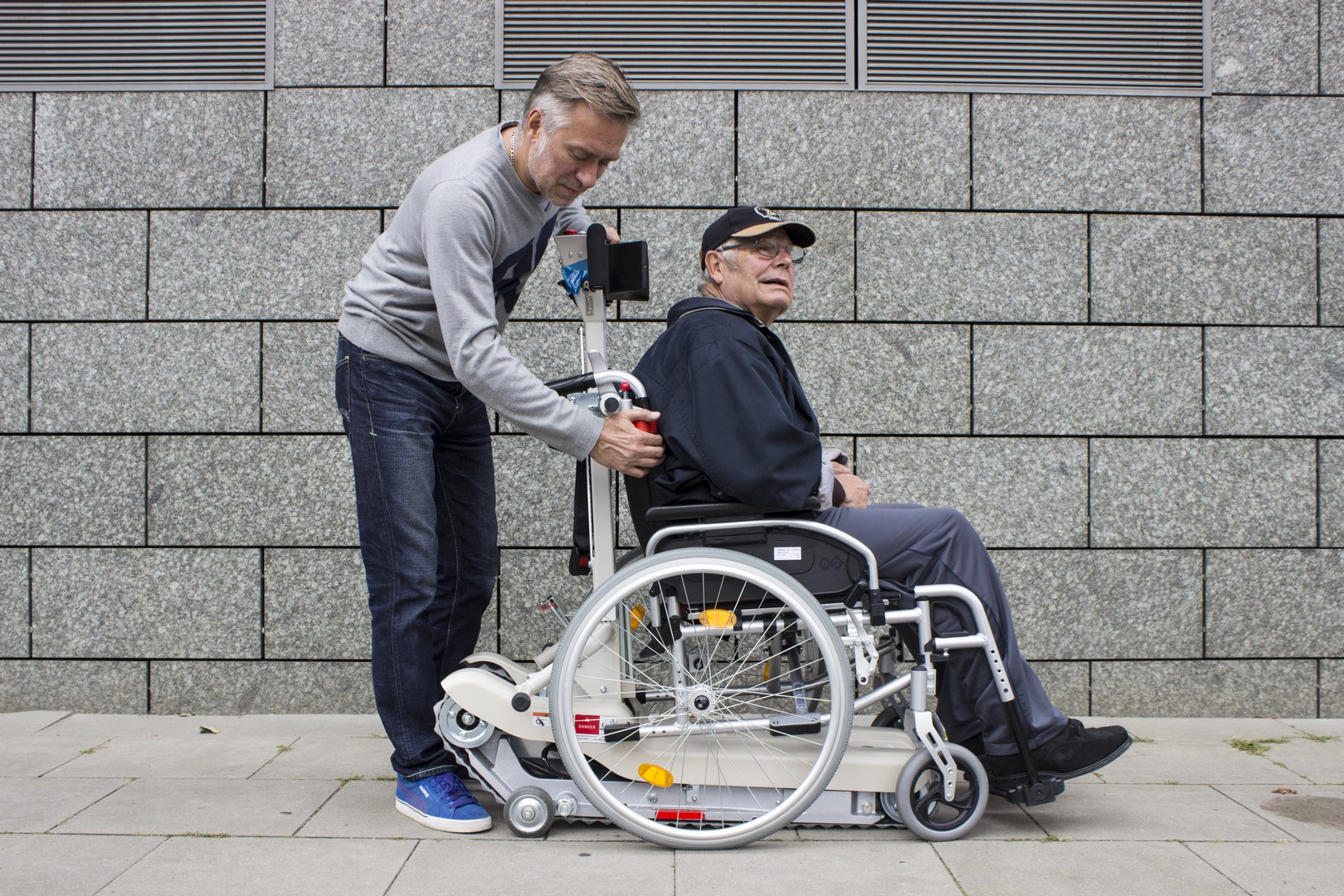

Operating
Minimal landing space
In case the width of stair is 900 mm, it may need a cut of the steering, i.e. to turn gradually with pushing machine forward and backward.
Data Sheet
Specification - SA-3
capacity kg - 160 (135 with shoe attachment)
measurements L/W/H mm - 1486 x 690 (with shoe attachment 780) x 918
weight kg - 65
power DC-E-Motor (waterproof) - 210W / 30 min. rated output
battery - valve regulated lead-acid battery 2 x 6 V / 20 Ah / 20HR
speed upstairs - 6,5 m / min.
speed downstairs - 10 m / min.
stair angle max. - 35°
brakes - Power off activated electromagnetic brake
battery load controll - incl.
Order-No. 333.600
Accessories
autom. charger 12 V / 2,5 A - Order-No. 333.252
Junior-platform - Order-No. 135.331
Shoe attachment incl. multifunction clamp - Order-No. 333.601
For more information, please download our latest brochure in PDF format (approx. 20MB).
