Stair Climber Major TRE-70
Stair Climber Major TRE-70
Auto-leveling platform – unique in the world
Advancement to Stair Climber TRE-52
• Electrical loading winch to pull the wheelchair
• An integrated loading ramp with non-skid surface makes wheelchair boarding easy
• Sensor 1 & 2: In ascending/descending, to make running speed faster/slower. In descending, at the edge of landing space, to make the rail frame bent.
• Sensor 3: In descending, at the edge of landing space, to make the rail frame straight and to make descending speed faster
• Sensor 4 & 5: In ascending, to make the rail frame bent and to make ascending speed slower

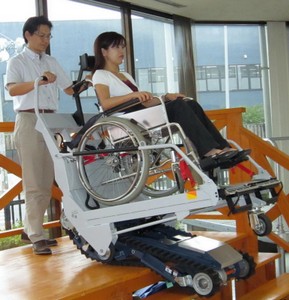

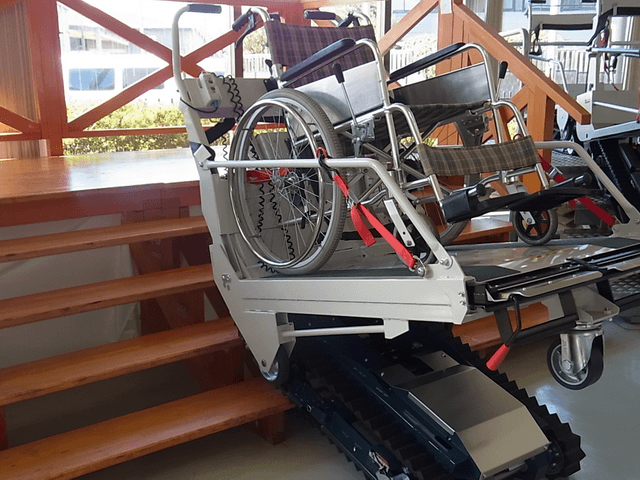

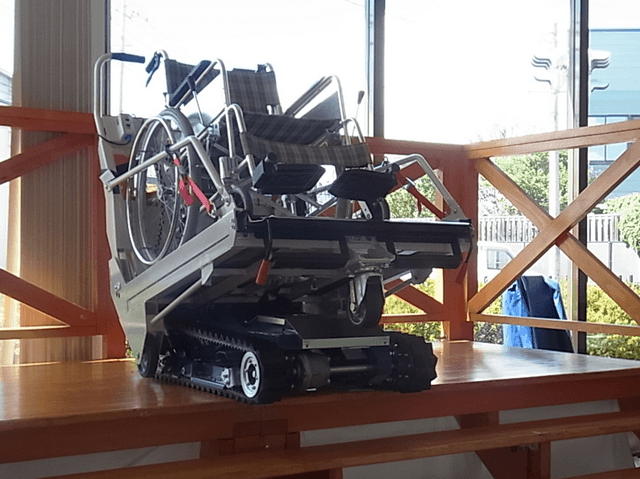

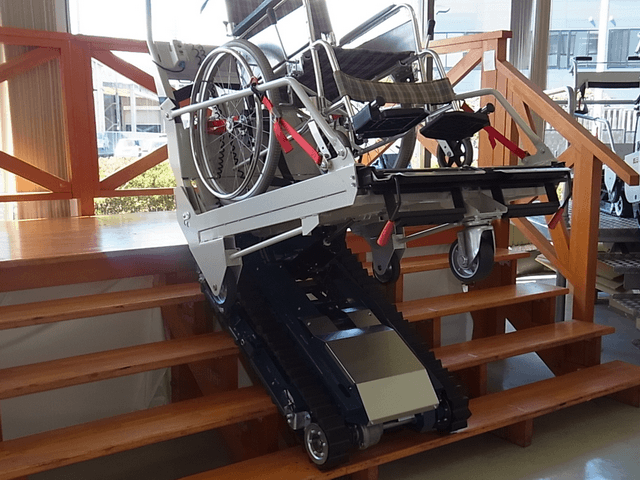

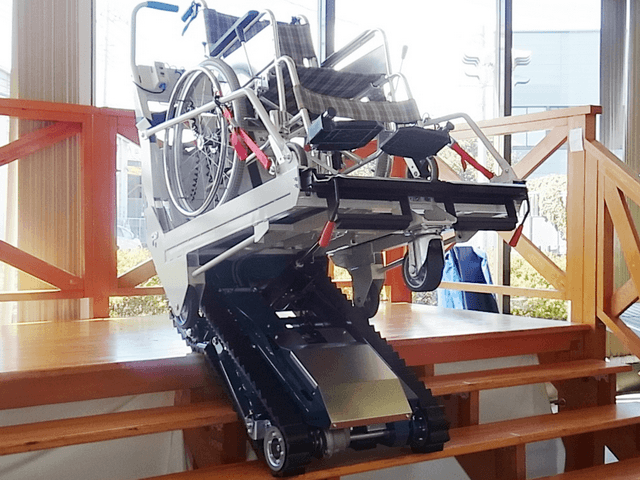

Stair Climber Major TRE-70 – In Action
Features
• 230 kg maximum load capacity – the biggest capacity for a mobile Stair Climber
• Steady, safe and easy drive through floor, stairway and landing by the Flexible Drive Frame
• The Auto-leveling Platform ensures the passenger more comfortable trips
• A suitable climbing speed are selected automatically at any section of staircase
• The Powered Loading Winch and the Wider Ramps ensure more comfortable loading for both, the passenger and the operator

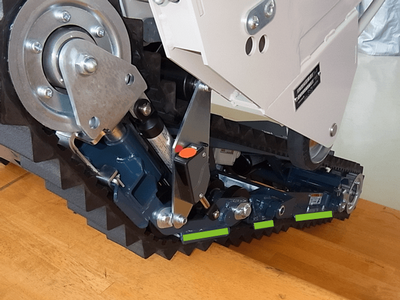

Easy and safe landing by flexible frame
Funktionsweise
The platform always remains horizontal. Comfortable for wheelchair users!
Data Sheet
Specification - Stair Climber Major TRE-70
capacity kg - 230
measurements L/W/H mm - 1394 x 816 x 1290
weight kg - 250
power - 210 W rated output
speed upstairs - 6,06 m / min.
speed downstairs - 8,26 m / min.
stair angle - 25-35°
brakes - electromagnetic
battery - 12 V / 24 Ah
Order-No. 333.130
For more information, please download our latest brochure in PDF format (approx. 20MB).
